CMA-3 Wheel for Double Glass Edging Machine 10S Polish Wheel for Double Glass Edging Machine

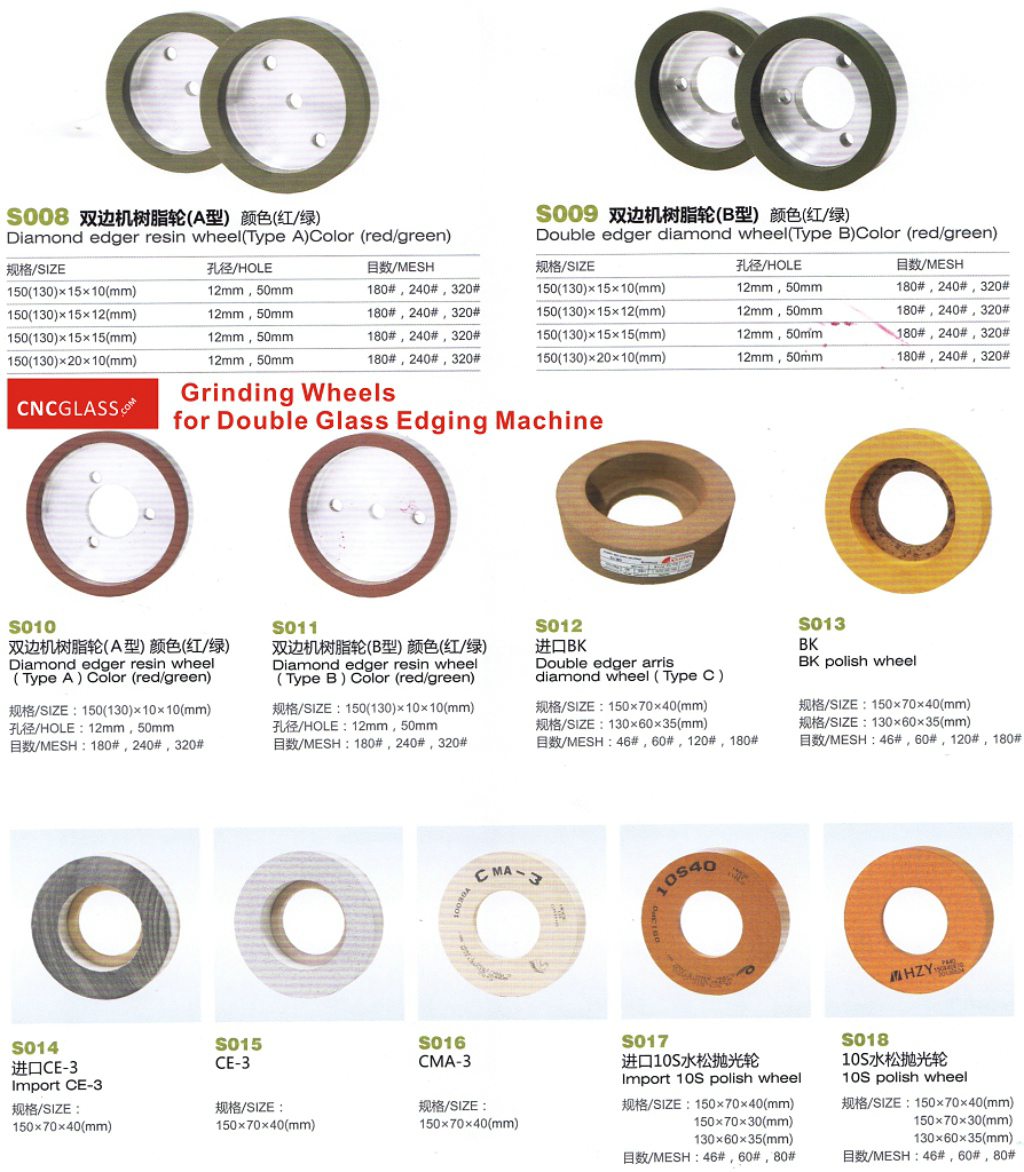

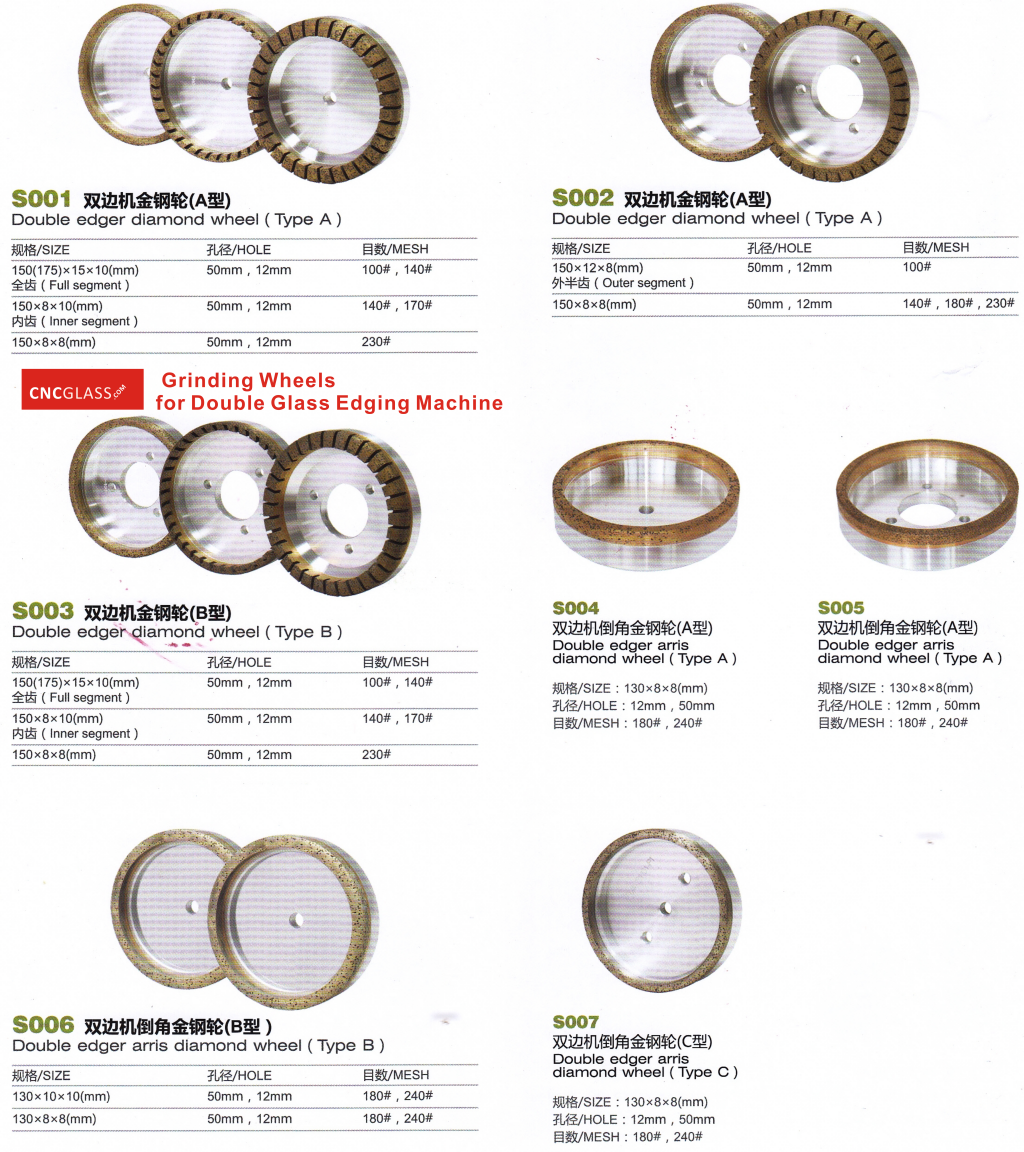

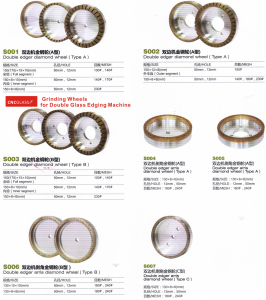

Grinding Wheels for Double Glass Edging Machine

Diamond Wheel for Double Glass Edging Machine

Resin Wheel for Double Glass Edging Machine
BK Polish Wheel for Double Glass Edging Machine
CE-3 Wheel for Double Glass Edging Machine
CMA-3 Wheel for Double Glass Edging Machine
10S Polish Wheel for Double Glass Edging Machine

UOLIN GLAZING SUPPORT
GUANGDONG, CHINA
UC@UCOLIN.COM
BENEXT77@GMAIL.COM
SKYPE: WECAN360
MOB: 0086 13612573215

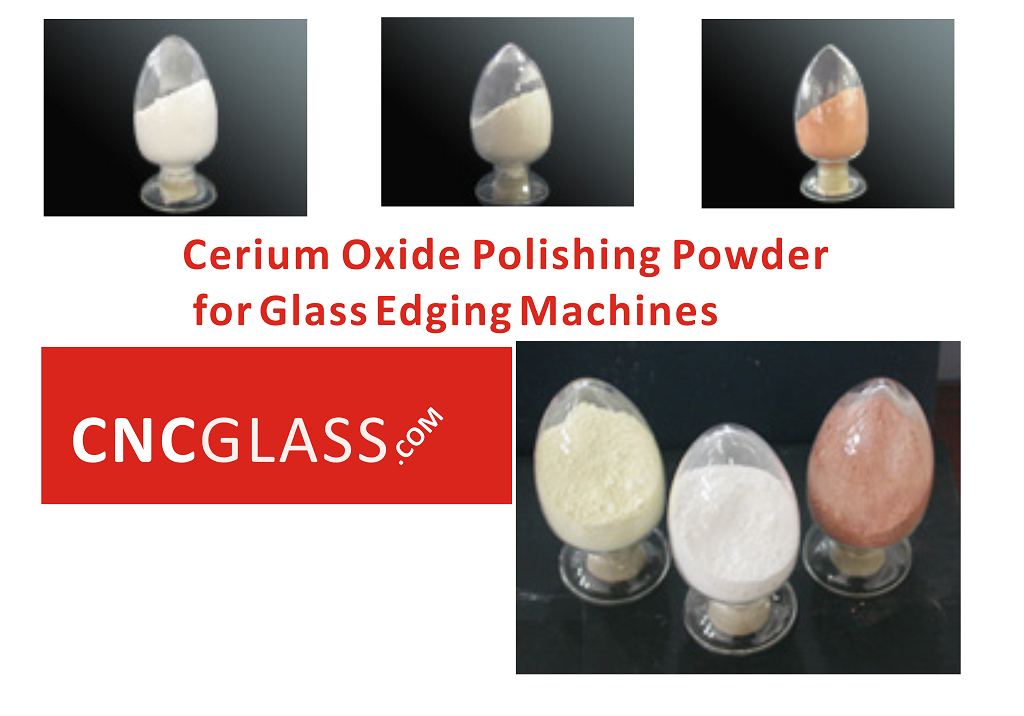

Cerium Oxide Polishing Powder for Glass Edging Machines

Name: Cerium Oxide Polishing Powder (Rare Earth Oxide )
Other Name:Cerium(IV)oxide,Cerium dioxide,Ceria, Ceric OxideFormula ：CeO2
Melting point: 2600ºC
Applications:

Widely applied in glass, ceramics and catalyst manufacturing. In glass industry, it is considered to be the most efficient glass polishing agent for precision optical polishing. It is also used to decolorize glass by keeping iron in its ferrous state.

The ability of cerium-doped glass to block out ultra violet light is utilized in the manufacturing of medical glassware and aerospace windows.

It is also used to prevent polymers from darkening in sunlight and to suppress discoloration of television glass.

It is applied to optical components to improve performance. High purity Ceria are also used in phosphors and dopant to crystal.

Preparation Method: Oxalate Precipitation Method, Cerium Chloride or Cerium nitrate liquor as raw material,use ammonia water to make the Ph down to 2,drop Oxalic acid subside the cerium oxalate,after thermal maturation,separate,washing,drying under 110℃,keep the temperature at 900～1000℃ firing into Cerium Oxide. Ce2(C2O4)3→2CeO2+2CO2+4CO

Product Features:
（1-Average particle size is about 0.5 m, and the max size less than 2 m.
（2-It has several advantage such as fast rate of polishing, excellent abrasion resistance, great suspension and easy to clean.

Composition:
TREO La2O3 CeO2 Pr6O11 Nd2O3 Fe2O3 CaO MgO F H2O
％ >94 <0.1 >99.9 <0.01 <0.01 <0.01 <0.5 <1 3-5 <0.5 Physical Index: Particle Size: D10>0.1 m, D50: 0.5-0.8 m, D100<3 m; pH=7~8 Packing: Net Weight: 20 kg. Safety:Non-toxic, tasteless, non-irritating, safe, reliable, stable performance, with water and organic chemical reaction does not occur, is an ideal new or UV sunscreen agents。 Acute toxicity: Oral - rat LD50:> 5000 mg / kg; the abdominal cavity – mouse LD50: 465 mg / kg. Flammability hazardous characteristics: flammable.Storage characteristics: low temperature air drying warehouse. Extinguishing Media: Water.

All rights reserved by CNC GLASS INTERLAYER TECH:
Product 1]CNC EVA FILM INERLAYER FOR ARCHITECTURAL LAMINATED GLASS
eva@evafilms.com
Product 2]CNC PDLC SMART GLASS FILM FOR PRIVACY SWITCHABLE GLASS
smartfilm@smartestglass.com
Product 3]CNC PVB FILM INTERLAYER FOR AUTOMOTIVE WINDSHIELD GLASS
www.cncglass.com

Case Study: Cracked Annealed EVA Film Laminated Glass with Fabric Inserted

Case Study Cracked Annealed EVA Film Laminated Glass with Fabric Inserted

Case Study: Cracked Annealed EVA Film Laminated Glass with Fabric Inserted
By Peter Lin

Glass Questions
One glass friend ask questions of EVA film laminated glass on the LINKEDIN group:
http://www.linkedin.com/groups/EVA-GLASS-LAMINATING-4147748
Cracked annealed laminated glass with fabric
I’ve got some samples from various eva suppliers(Note this is not CNCGLASS EVA). We tried it on the fabric and the only problem with them after they were processed was the bubbles around the edges. After 3 weeks, we found out that most of them have cracks, which does not happened to eva laminated glass without fabric. The crack was edge to edge and in the middle of the pane.

Glass Answers
Here is the reasons and solutions of the glass question answered by Peter Lin
First, let’s analyze the question.

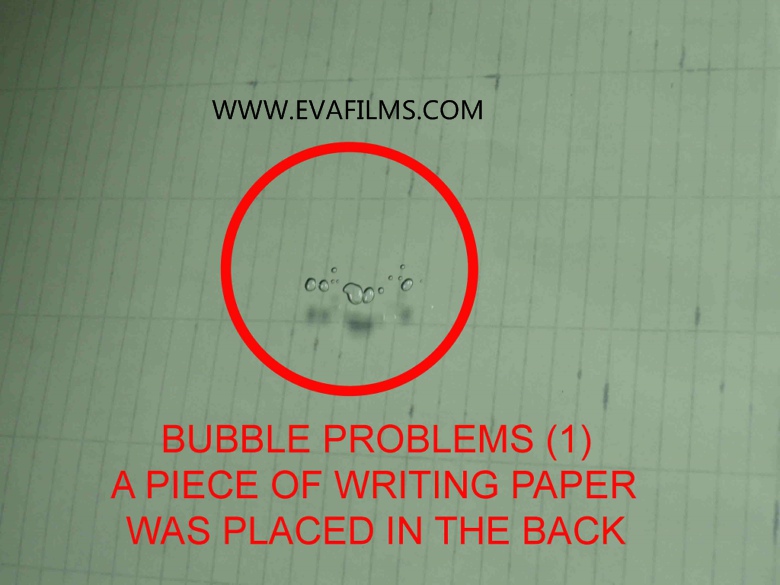

Situation 1-When you just make EVA Film laminated glass(without fabric) you don’t have the bubbles.

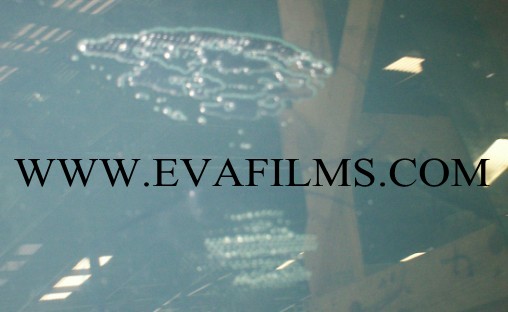

Situation 2-When you make fabric EVA laminated glass (fabric inserted), you have bubbles around edges.

Here is the reasons and solutions:
1-You should use thicker EVA film (for example, change from 0.38MM to 0.76MM) when you are laminating with fabric. You need more EVA film to fill the surface gap of the glass and fabric.
2-You should use the EVA film that is better in melt flow index. Which means, the melting EVA film is easier to flow to fill all the gaps and surface of the glass and the fabric.
3-If the glass is cracked in edges and in the middle, you should use the EVA film (for example CNC GLASS EVA FILM) that is eliminated the internal strength of the EVA film when the EVA film is produced on the EVA extruded producing line. So the EVA film will be less at expanding with heat and contracting with cold.

4-Check if the fabric you use is sensitive at expanding with heat and contracting with cold, if so, please try to find a one which is more stable at expanding with heat and contracting with cold.

Hope we answer your question.
If you have any other questions, please don’t hesitate to contact us.
Our email is cnc@cncglass.com.

Frequently Asked Question of Smart Glass Film(PDLC Film, SPD Film)

1-Frequently Asked Question of Smart Glass Film(PDLC Film, SPD Film)

Frequently Asked Question of Smart Glass Film(PDLC Film, SPD Film)
By Peter Lin
http://www.scribd.com/doc/151994679/1-Frequently-Asked-Question-of-Smart-Glass-Film-PDLC-Film-SPD-Film

-What do you call smart glass film in our life?
+Many names. Magic Glass and Magic Film, switchable glass/film, miracle glass/film, smart window, smart glass,PDLF FILM, glass, PDLC glass, and privacy window (glass), etc.

-Will Smart Glass or Smart Film be harmful to other electronic devices or the human body? Need to avoid children?
+Not at all.

-Can I try to modify Smart Glass or Smart Film by myself?
+Better not. Unless you are trained and experienced for this. Smart Glass or Smart Film are sensitive inside, and wrong modifications could lead to smart film broken.

-Will I get an electric shock if I touch Smart Glass or Smart Film without glove?
+No. Smart Glass or Smart Film are insulated very well and will not injury you if you touch them with your naked hand. If the Smart Glass or Smart Film are installed and used according to our instructions, the smart film/smart glass is safe.

-How long does it take Smart Glass or Smart Film to switch from transparent to frosted white and vice verse?
+Very short time. About 1/100th of a second to switch from transparent to frosted white. So you can not feel there is a delay.

-The Smart Glass or Smart Film is damaged, but the Smart Glass or Smart Film still works. Should I continue using it?
+No. A damaged glass or film may lead to a risk of electric shock. Turn it off and Unplug it.

1 frequently asked question of smart glass film(pdlc film, spd film) from CNC Glass Interlayer(China)

All rights reserved by CNC-INTERLAYER TECH:
【Product 1】CNC-Force® EVA INERLAYER FOR ARCHITECTURAL LAMINATED GLASS
【Product 2】CNC-Smart® SMART FILM FOR PRIVACY SWITCHABLE GLASS
【Product 3】CNC-Shield® PVB INTERLAYER FOR AUTOMOTIVE WINDSHIELD GLASS
Web: www.CNCnext.com www.HelloGlass.com
Mail: cnc@cncnext.com
benext77@gmail.com/
benext77@hotmail.com

All rights reserved by CNC GLASS INTERLAYER TECH:
Product 1]CNC-Force EVA INERLAYER FOR ARCHITECTURAL LAMINATED GLASS
eva@evafilms.com
Product 2]CNC-SmartSMART FILM FOR PRIVACY SWITCHABLE GLASS
smartfilm@smartestglass.com
Product 3]CNC-Shield PVB INTERLAYER FOR AUTOMOTIVE WINDSHIELD GLASS
Web: www.CNCglass.com www.CNCnext.com
Mail: cnc@cncglass.com
benext77@gmail.com

Silicone Bag for Laminated Glass Machine Laminating EVA Interlayer Film

By Zac Lynn

+EVA Film:
EVA stands for ethylene vinyl acetate, a copolymer resin used in the production of laminated glass as the interlayer sandwiched between two pieces of glass. The main function of the interlayer is to stick the two piece of glass together, in order to make the sandwiched glass safer and more secure.
EVA Film is made out of macromolecule material and it performs excellent in bonding strength, heat resistance, cold resistance, humidity resistance and tensile strength in laminated glass. It has been partly taking the places of PVB film in laminated safety glass, laminated art glass, laminated color glass.
EVA film is not adhesive before heating. After heating, it melts and reacts. In the production of laminated glass with EVA interlayer, no autoclave, roller press, air bag, or vacuum rubber ring is required. As EVA interlayer can be processed under normal climatic conditions, no clean room with climatic control is required. And the producing machine of laminated glass with EVA Film is less cost and easier to process.

+Laminated Glass with EVA Film
Laminated Glass with EVA Film is an important kind of laminated glass in glass industry .The processing principle of EVA laminated glass is similar to most of the laminated glass . Furthermore, using EVA film to laminating glass does not require autoclave. All laminating processing will be finished and completed in one vacuum laminator. EVA Film for laminated glass has excellent transparency, outstanding adhesion and aging-resistance (more than 15 years), can be used for architectural glass, decorative glass with fabric, privacy glass, auto glass etc.

+EVA Vacuum Glass Laminating Machine is a equipment specially designed for manufacturing laminated safety and decoration glass with Ethylene-vinyl acetate EVA Interlayer Film (some kind of the one-step glass laminating machine can also processing Polyvinyl Butyral PVB Interlayer Film).

The EVA Vacuum Glass Laminating Machine uses the silicone vacuum bag to make the pre-laminated glass is heating in the vacuum condition to guarantee that final laminated glass don’t have bubbles.

It’s also possible to laminate EVA Interlayer Film with silk, paper, calligraphy and painting, ultraviolet radiation unilateralism film, light adjusted film and so on. All kinds of art glass, decorated glass, privacy glass, safety glass and solar panel can be processed in the EVA Vacuum Glass Laminating Machine.

Compared to autoclave producing line for Polyvinyl Butyral PVB Interlayer Film, the EVA Vacuum Glass Laminating Machine is much easier to operate and less cost to build., and more flexible and convenient for the designer.

+Silicone Bag for Laminated Glass Machine Laminating EVA Interlayer

+Product features:
Great heat-resistant,
Great aging-resistance ,
Great resistance to EVA
Anti-corrosive,
Environment-friendly,
Long-use life,

+Product specification:
1) Common thickness: 3mm
2) Maximum width:3800mm without any joints
3) Any length
4) Common color: Milky (other color is available for custom)
5) Custom as customers require

All Rights Reserved By UCOLIN SILICONE TECH
(1)-Silicone Vacuuming Bag for EVA Glass Laminating Machine/Privacy Glass Laminating
(2)-Silicone Sheet for EVA Glass Laminating Machine
(3)-Silicone Bag for PVB Glass Laminating Auto-clave
(4)-Silicone Rubber Sheet for Solar Cell Module Laminating Machine
(5)-Contact Us: ucolin@ucolin.com / www.ucolin.com
umewe360@gmail.com/ umewe360@hotmail.com

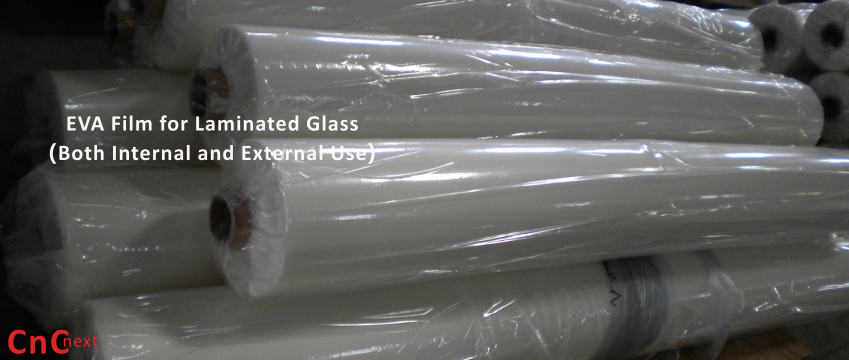

Ethylene-vinyl acetate EVA Interlayer Film for Laminated Glass

EVA Film:
EVA stands for ethylene vinyl acetate, a copolymer resin used in the production of laminated glass as the interlayer sandwiched between two pieces of glass. The main function of the interlayer is to stick the two piece of glass together, in order to make the sandwiched glass safer and more secure.

EVA Film is made out of macromolecule material and it performs excellent in bonding strength, heat resistance, cold resistance, humidity resistance and tensile strength in laminated glass. It has been partly taking the places of PVB film in laminated safety glass, laminated art glass, laminated color glass.
EVA film is not adhesive before heating. After heating, it melts and reacts. In the production of laminated glass with EVA interlayer, no autoclave, roller press, air bag, or vacuum rubber ring is required. As EVA interlayer can be processed under normal climatic conditions, no clean room with climatic control is required. And the producing machine of laminated glass with EVA Film is less cost and easier to process.

Laminated Glass with EVA Film
Laminated Glass with EVA Film is an important kind of laminated glass in glass industry .The processing principle of EVA laminated glass is similar to most of the laminated glass . Furthermore, using EVA film to laminating glass does not require autoclave. All laminating processing will be finished and completed in one vacuum laminator. EVA Film for laminated glass has excellent transparency, outstanding adhesion and aging-resistance (more than 15 years), can be used for architectural glass, decorative glass with fabric, privacy glass, auto glass etc.

Advantages of EVA film :
– High tensile strength
– Excellent transparency
– Outstanding adhesion
– UV protection
– High impact resistance
– Good temperature withstanding
– Water proof
– Humidity durable
– Long-term reliable (long-term aging resistance)
– Sound barrier

Names of EVA FILM for Laminated Glass
Some will call EVA Film in different name:
-laminated glass eva interlayer
-ethylene vinyl acetate film
-solar eva film
-glass lamination film
-glass laminating film
-laminating film rolls
-lamination film
-safety glass film
-tempered glass film
-security glass film
-glass eva film
-laminate film
-security laminate film
-decorative glass film
-stained glass film

EVA FILM Category
Based on the UV Blocked rate, the EVA FILM can divided into :
Indoor EVA FILM and Outdoor EVA FILM.
Indoor EVA FILM, of course, the UV blocked rate is lower than 50%. So they can only be used inside building.
But how is it going to happen, if I put the indoor EVA FILM laminated glass in outdoor using?
The indoor EVA FILM laminated glass will turn yellow in short period, maybe two years, and bubbles will come out inside the laminated glass, and the EVA FILM will break away from the glass.

For outdoor EVA FILM, the most advanced EVA FILM can absorb 99% of the UV radiation.
But at least the UV radiation should be absorbed more than 85% percent to be implied for outdoor.
Yes, it’s not necessary to say but I want to mention that you can use the outdoor EVA FILM for indoor.

Based on colors, EVA FILM can divide into:
-no color transparent
-colored transparent (standard 8 colors in China)
-colored translucent (standard 7 colors in China)
-colored opaque
-Black (transparent, translucent, opaque)
-white (transparent, translucent, opaque)
The standard colors are:
RED/DEEP GREEN/GRASS GREEN/BLUE/LEMON YELLOW/ORANGE YELLOW/PURPLE/PINK

Based on thickness, the EVA FILM can divide into:
(CNCGLASS produces 0.38mm and 0.76mm.)
0.38mm
0.76mm
